嵌入式算法18---RSA非对称加密算法

时间：03-17来源：作者：点击数：50

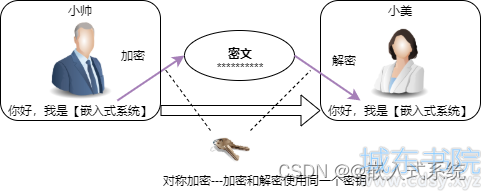

1、对称加密算法

对称加密算法是应用较早的加密算法，数据发送方将明文和密钥经加密算法处理，使其变成密文发送出去；接收方收到密文后，使用和加密算法相同的密钥进行逆算法解密，还原出明文。在对称加密算法中，使用的密钥只有一个，收发双方使用相同的密钥对数据进行加密或解密。

在这里插入图片描述

双方都必须保管好密钥，任一方的密钥泄露，都会导致加密信息不安全；尤其是双方协商更换密钥过程中，密钥会出现在传输过程中，严重影响数据的安全性。

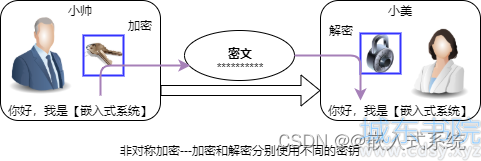

2、非对称加密算法

和对称加密算法最大的区别是，非对称加密算法需要两个密钥，公开密钥（public key 简称公钥）和私有密钥（private key 简称私钥），且公钥与私钥是互相关联的一对。使用公钥对数据进行加密，只有用对应的私钥才能解密，私钥加密签名也只有公钥能解密验签。

在这里插入图片描述

非对称加密算法实现机密信息交换的基本过程：

1、甲方生成一对密钥并将公钥公开，私钥保密

2、乙方使用甲方的提供的公钥，对机密信息加密后再发送给甲方；甲方使用自己私钥对加密后的信息进行解密

3、甲方也可以使用自己的私钥对机密信息进行签名后再发送给乙方，乙方用甲方的提供公钥对甲方发来的密文进行验签

非对称加密算法的特点：

1、公钥公开，私钥私藏，无需双方传输密钥协商，所以安全性比对称加密算法更高

2、非对称加密的算法复杂，运算速度比对称加密解密的速度慢很多

3、一般情况下使用非对称加密保护对称加密的密钥，密钥协商后使用对称加密进行通信

3、RSA算法与密钥

非对称加密算法中最常用的当属 RSA ，其算法本身基于一个简单的数论知识，给出两个素数，很容易将它们相乘，然而给出它们的乘积，想得到这两个素数就显得尤为困难。具体的私钥与公钥生成原理和加密、解密过程，不是本文关注的重点。

私钥和公钥的生成，可以借助mbedtls源码或openSSL工具生成，举例如下：

1、安装openSSL，下载地址

https://www.openssl.org/

2、安装后进入openSSL命令行界面，生成RSA2048的私钥，存入private.key文件

OpenSSL>genrsa -out private.key 2048

3、基于公钥生成私钥，存入文件public.key

OpenSSL> rsa -in private.key -pubout -out public.key

4、有些算法库采用传入指数、模数方式进行加解密，而前面生成的公私钥是PEM格式，需要变成Exponent、Modulus形式，就可以使用以下工具在线转换。

https://www.oren.net.cn/rsa/info.html

4、源码

以下是RSA2048的C源码和验证范例，基于Qt测试，也可以结合硬件性能改为RSA1024，移植时注意适配形如 portable_***的三个API。

  • /************************************/

  • //关注微信公众号  嵌入式系统

  • /************************************/

  • //rsa.h

  • #include "stdlib.h"

  •

  • #define RSA_ENCODE_LEN  (2048/8)   //RSA2048即256字节，可以视硬件情况改为1024

  •

  • typedef unsigned char uint8_t;

  • typedef unsigned short int uint16_t;

  • typedef unsigned int  uint32_t;

  •

  • #define BI_MAXLEN 130

  • #define DEC 10

  • #define HEX 16

  •

  • #define CARRYOVER  0x10000

  • #define CARRYLAST   0xFFFF

  •

  • typedef struct

  • {

  •     uint32_t m_nLength;    //大数在0x1 00 00 00 00进制下的长度

  •     uint16_t m_ulValue[BI_MAXLEN];    //用数组记录大数在0x100000000进制下每一位的值

  • } CBigInt;

  •

  •

  • //rsa.c

  • #include "rsa.h"

  • #include "time.h"

  •

  • /******************* 适配API *******************/

  • #define portable_malloc  malloc

  • #define portable_free    free

  •

  • //随机数种子源

  • uint32_t portable_rand_seed(void)

  • {

  •     time_t timestamp;

  •     time(&timestamp);

  •     return timestamp;

  • }

  • /******************* 适配API *******************/

  •

  • /*****************************************************************

  • 基本操作与运算

  • Init, 构造大数对象并初始化为零

  • Mov，赋值运算，可赋值为大数或普通整数，可重载为运算符“=”

  • Cmp，比较运算，可重载为运算符“==”、“!=”、“>=”、“<=”等

  • Add，加，求大数与大数或大数与普通整数的和，可重载为运算符“+”

  • Sub，减，求大数与大数或大数与普通整数的差，可重载为运算符“-”

  • Mul，乘，求大数与大数或大数与普通整数的积，可重载为运算符“*”

  • Div，除，求大数与大数或大数与普通整数的商，可重载为运算符“/”

  • Mod，模，求大数与大数或大数与普通整数的模，可重载为运算符“%”

  • *****************************************************************/

  • static CBigInt *Mov_Big_Long(CBigInt *X, uint32_t A);

  • static CBigInt *Mov_Big_Big(CBigInt *X, CBigInt *A);

  • static CBigInt *Add_Big_Big(CBigInt *X, CBigInt *A);

  • static CBigInt *Sub_Big_Big(CBigInt *X, CBigInt *A);

  • static CBigInt *Mul_Big_Big(CBigInt *X, CBigInt *A);

  • static CBigInt *Div_Big_Big(CBigInt *X, CBigInt *A);

  • static CBigInt *Mod_Big_Big(CBigInt *X, CBigInt *A);

  • static CBigInt *Add_Big_Long(CBigInt *X, uint32_t A);

  • static CBigInt *Sub_Big_Long(CBigInt *X, uint32_t A);

  • static CBigInt *Mul_Big_Long(CBigInt *X, uint32_t A);

  • static CBigInt *Div_Big_Long(CBigInt *X, uint32_t A);

  • static uint32_t Mod_Big_Long(CBigInt *N, uint32_t A);

  • static int Cmp(CBigInt *N, CBigInt *A);

  •

  • /*****************************************************************

  • 输入输出

  • Get，从字符串按10进制或16进制格式输入到大数

  • Put，将大数按10进制或16进制格式输出到字符串

  • *****************************************************************/

  • static CBigInt *Get(CBigInt *N, char *str, uint32_t system);

  • static char *Put(CBigInt *N, uint32_t system);

  •

  • /*****************************************************************

  • RSA相关运算

  • Rab，拉宾米勒算法进行素数测试

  • Euc，欧几里德算法求解同余方程

  • RsaTrans，反复平方算法进行幂模运算

  • GetPrime，产生指定长度的随机大素数

  • *****************************************************************/

  • static int Rab(CBigInt *N);

  • static CBigInt *Euc(CBigInt *X, CBigInt *A);

  • static CBigInt *RsaTrans(CBigInt *X, CBigInt *A, CBigInt *B);

  • static CBigInt *GetPrime(CBigInt *X, int bits);

  •

  •

  • /*****************************************************************

  • 大数运算库源文件：BigInt.c

  • 说明：适用于C，linux系统 1024位RSA运算

  • *****************************************************************/

  • //小素数表

  • const static int PrimeTable[550] =

  • {

  •     3,     5,     7,     11,   13,   17,   19,   23,   29,   31,    37,   41,   43,   47,   53,   59,   61,   67,   71,   73,

  •     79,   83,   89,   97,   101,   103,   107,   109,   113,   127,    131,   137,   139,   149,   151,   157,   163,   167,   173,   179,

  •     181,   191,   193,   197,   199,   211,   223,   227,   229,   233,    239,   241,   251,   257,   263,   269,   271,   277,   281,   283,

  •     293,   307,   311,   313,   317,   331,   337,   347,   349,   353,    359,   367,   373,   379,   383,   389,   397,   401,   409,   419,

  •     421,   431,   433,   439,   443,   449,   457,   461,   463,   467,    479,   487,   491,   499,   503,   509,   521,   523,   541,   547,

  •     557,   563,   569,   571,   577,   587,   593,   599,   601,   607,    613,   617,   619,   631,   641,   643,   647,   653,   659,   661,

  •     673,   677,   683,   691,   701,   709,   719,   727,   733,   739,    743,   751,   757,   761,   769,   773,   787,   797,   809,   811,

  •     821,   823,   827,   829,   839,   853,   857,   859,   863,   877,    881,   883,   887,   907,   911,   919,   929,   937,   941,   947,

  •     953,   967,   971,   977,   983,   991,   997,   1009, 1013, 1019,    1021, 1031, 1033, 1039, 1049, 1051, 1061, 1063, 1069, 1087,

  •     1091, 1093, 1097, 1103, 1109, 1117, 1123, 1129, 1151, 1153,    1163, 1171, 1181, 1187, 1193, 1201, 1213, 1217, 1223, 1229,

  •     1231, 1237, 1249, 1259, 1277, 1279, 1283, 1289, 1291, 1297,    1301, 1303, 1307, 1319, 1321, 1327, 1361, 1367, 1373, 1381,

  •     1399, 1409, 1423, 1427, 1429, 1433, 1439, 1447, 1451, 1453,    1459, 1471, 1481, 1483, 1487, 1489, 1493, 1499, 1511, 1523,

  •     1531, 1543, 1549, 1553, 1559, 1567, 1571, 1579, 1583, 1597,    1601, 1607, 1609, 1613, 1619, 1621, 1627, 1637, 1657, 1663,

  •     1667, 1669, 1693, 1697, 1699, 1709, 1721, 1723, 1733, 1741,    1747, 1753, 1759, 1777, 1783, 1787, 1789, 1801, 1811, 1823,

  •     1831, 1847, 1861, 1867, 1871, 1873, 1877, 1879, 1889, 1901,    1907, 1913, 1931, 1933, 1949, 1951, 1973, 1979, 1987, 1993,

  •     1997, 1999, 2003, 2011, 2017, 2027, 2029, 2039, 2053, 2063,    2069, 2081, 2083, 2087, 2089, 2099, 2111, 2113, 2129, 2131,

  •     2137, 2141, 2143, 2153, 2161, 2179, 2203, 2207, 2213, 2221,    2237, 2239, 2243, 2251, 2267, 2269, 2273, 2281, 2287, 2293,

  •     2297, 2309, 2311, 2333, 2339, 2341, 2347, 2351, 2357, 2371,    2377, 2381, 2383, 2389, 2393, 2399, 2411, 2417, 2423, 2437,

  •     2441, 2447, 2459, 2467, 2473, 2477, 2503, 2521, 2531, 2539,    2543, 2549, 2551, 2557, 2579, 2591, 2593, 2609, 2617, 2621,

  •     2633, 2647, 2657, 2659, 2663, 2671, 2677, 2683, 2687, 2689,    2693, 2699, 2707, 2711, 2713, 2719, 2729, 2731, 2741, 2749,

  •     2753, 2767, 2777, 2789, 2791, 2797, 2801, 2803, 2819, 2833,    2837, 2843, 2851, 2857, 2861, 2879, 2887, 2897, 2903, 2909,

  •     2917, 2927, 2939, 2953, 2957, 2963, 2969, 2971, 2999, 3001,    3011, 3019, 3023, 3037, 3041, 3049, 3061, 3067, 3079, 3083,

  •     3089, 3109, 3119, 3121, 3137, 3163, 3167, 3169, 3181, 3187,    3191, 3203, 3209, 3217, 3221, 3229, 3251, 3253, 3257, 3259,

  •     3271, 3299, 3301, 3307, 3313, 3319, 3323, 3329, 3331, 3343,    3347, 3359, 3361, 3371, 3373, 3389, 3391, 3407, 3413, 3433,

  •     3449, 3457, 3461, 3463, 3467, 3469, 3491, 3499, 3511, 3517,    3527, 3529, 3533, 3539, 3541, 3547, 3557, 3559, 3571, 3581,

  •     3583, 3593, 3607, 3613, 3617, 3623, 3631, 3637, 3643, 3659,    3671, 3673, 3677, 3691, 3697, 3701, 3709, 3719, 3727, 3733,

  •     3739, 3761, 3767, 3769, 3779, 3793, 3797, 3803, 3821, 3823,    3833, 3847, 3851, 3853, 3863, 3877, 3881, 3889, 3907, 3911,

  •     3917, 3919, 3923, 3929, 3931, 3943, 3947, 3967, 3989, 4001

  • };

  •

  • /****************************************************************************************

  • 大数比较

  • 调用方式：Cmp(N,A)

  • 返回值：若N<A返回-1；若N=A返回0；若N>A返回1

  • ****************************************************************************************/

  • static int Cmp(CBigInt *N, CBigInt *A)

  • {

  •     int i;

  •     if(N->m_nLength > A->m_nLength)

  •     {

  •         return 1;

  •     }

  •     if(N->m_nLength < A->m_nLength)

  •     {

  •         return -1;

  •     }

  •     for(i = N->m_nLength - 1; i >= 0; i--)

  •     {

  •         if(N->m_ulValue[i] > A->m_ulValue[i])

  •         {

  •             return 1;

  •         }

  •         if(N->m_ulValue[i] < A->m_ulValue[i])

  •         {

  •             return -1;

  •         }

  •     }

  •     return 0;

  • }

  •

  • /****************************************************************************************

  • 大数赋值

  • 调用方式：__Mov_Big_Big(A)

  • 返回值：N,被赋值为A

  • ****************************************************************************************/

  • static CBigInt *Mov_Big_Big(CBigInt *X, CBigInt *A)

  • {

  •     memcpy(X, A, sizeof(CBigInt));

  •     return X;

  • }

  •

  • static CBigInt *Mov_Big_Long(CBigInt *N, uint32_t A)

  • {

  •     int i;

  •     if(A > CARRYLAST)

  •     {

  •         N->m_nLength = 2;

  •         N->m_ulValue[1] = (uint16_t)(A >> 16);

  •         N->m_ulValue[0] = (uint16_t)A;

  •     }

  •     else

  •     {

  •         N->m_nLength = 1;

  •         N->m_ulValue[0] = (uint16_t)A;

  •     }

  •     memset((unsigned char*)&N->m_ulValue[N->m_nLength], 0, sizeof(uint16_t) * (BI_MAXLEN - N->m_nLength));

  •     return N;

  • }

  •

  • /****************************************************************************************

  • 大数相加

  • 调用形式：Add_Big_Big(X,A)

  • 返回值：X=X+A

  • ****************************************************************************************/

  • static CBigInt *Add_Big_Big(CBigInt *X, CBigInt *A)

  • {

  •     uint32_t i;

  •     uint16_t carry = 0;

  •     uint32_t sum = 0;

  •     if(X->m_nLength < A->m_nLength)

  •     {

  •         X->m_nLength = A->m_nLength;

  •     }

  •     for(i = 0; i < X->m_nLength; i++)

  •     {

  •         sum = A->m_ulValue[i];

  •         sum = sum + X->m_ulValue[i] + carry;

  •         X->m_ulValue[i] = (uint16_t)sum;

  •         carry = (uint16_t)(sum >> 16);

  •     }

  •     X->m_ulValue[X->m_nLength] = carry;

  •     X->m_nLength += carry;

  •     return X;

  • }

  •

  • static CBigInt *Add_Big_Long(CBigInt *X, uint32_t A)

  • {

  •     uint32_t sum;

  •     sum = X->m_ulValue[0];

  •     sum += A;

  •     X->m_ulValue[0] = (uint16_t)sum;

  •     if(sum > CARRYLAST)

  •     {

  •         uint32_t i = 1;

  •         while(X->m_ulValue[i] == CARRYLAST)

  •         {

  •             X->m_ulValue[i] = 0;

  •             i++;

  •         }

  •         X->m_ulValue[i]++;

  •         if(X->m_nLength == i)

  •         {

  •             X->m_nLength++;

  •         }

  •     }

  •     return X;

  • }

  •

  • /****************************************************************************************

  • 大数相减

  • 调用形式：Sub_Big_Big(X,A)

  • 返回值：X=X-A

  • ****************************************************************************************/

  • static CBigInt *Sub_Big_Big(CBigInt *X, CBigInt *A)

  • {

  •     if(Cmp(X, A) <= 0)

  •     {

  •         memset(X, 0, sizeof(CBigInt));

  •         return X;

  •     }

  •     else

  •     {

  •         uint16_t carry = 0;

  •         uint32_t num;

  •         uint32_t i;

  •         for(i = 0; i < X->m_nLength; i++)

  •         {

  •             if((X->m_ulValue[i] > A->m_ulValue[i]) || ((X->m_ulValue[i] == A->m_ulValue[i]) && (carry == 0)))

  •             {

  •                 X->m_ulValue[i] = X->m_ulValue[i] - carry - A->m_ulValue[i];

  •                 carry = 0;

  •             }

  •             else

  •             {

  •                 num = CARRYOVER + X->m_ulValue[i];

  •                 X->m_ulValue[i] = (uint32_t)(num - carry - A->m_ulValue[i]);

  •                 carry = 1;

  •             }

  •         }

  •         while(X->m_ulValue[X->m_nLength - 1] == 0)

  •         {

  •             X->m_nLength--;

  •         }

  •         return X;

  •     }

  • }

  •

  • static CBigInt *Sub_Big_Long(CBigInt *X, uint32_t A)

  • {

  •     if(X->m_ulValue[0] >= A)

  •     {

  •         X->m_ulValue[0] -= A;

  •         return X;

  •     }

  •     if(X->m_nLength == 1)

  •     {

  •         memset(X, 0, sizeof(CBigInt));

  •         return X;

  •     }

  •     else

  •     {

  •         uint32_t num = CARRYOVER + X->m_ulValue[0];

  •         int i = 1;

  •         X->m_ulValue[0] = (uint16_t)(num - A);

  •         while(X->m_ulValue[i] == 0)

  •         {

  •             X->m_ulValue[i] = CARRYLAST;

  •             i++;

  •         }

  •         X->m_ulValue[i]--;

  •         if(X->m_ulValue[i] == 0)

  •         {

  •             X->m_nLength--;

  •         }

  •         return X;

  •     }

  • }

  •

  • /****************************************************************************************

  • 大数相乘

  • 调用形式：Mul_Big_Big(N,A)

  • 返回值：X=N*A

  •     A	a 0

  •     N	c d

  •         0					d*0

  •         1			c*0

  •                     d*a

  •         2	c*a

  •

  • ****************************************************************************************/

  • static CBigInt *Mul_Big_Big(CBigInt *X, CBigInt *A)

  • {

  •     if(A->m_nLength == 1)

  •     {

  •         return Mul_Big_Long(X, A->m_ulValue[0]);

  •     }

  •     else

  •     {

  •         uint32_t sum, mul = 0, carry = 0;

  •         uint32_t i, j;

  •         CBigInt N = {0};

  •         memcpy(&N, X, sizeof(CBigInt));

  •         memset(X, 0, sizeof(CBigInt));

  •         X->m_nLength = N.m_nLength + A->m_nLength - 1;

  •         for(i = 0; i < X->m_nLength; i++)

  •         {

  •             sum = carry;

  •             carry = 0;

  •             for(j = 0; j < A->m_nLength; j++)

  •             {

  •                 if(((i - j) >= 0) && ((i - j) < N.m_nLength))

  •                 {

  •                     mul = N.m_ulValue[i - j];

  •                     mul *= A->m_ulValue[j];

  •                     carry += mul >> 16;

  •                     mul = mul & CARRYLAST;

  •                     sum += mul;

  •                 }

  •             }

  •             carry += sum >> 16;

  •             X->m_ulValue[i] = (uint16_t)sum;

  •         }

  •         if(carry)

  •         {

  •             X->m_nLength++;

  •             X->m_ulValue[X->m_nLength - 1] = (uint16_t)carry;

  •         }

  •         return X;

  •     }

  • }

  •

  • static CBigInt *Mul_Big_Long(CBigInt *X, uint32_t A)

  • {

  •     uint32_t mul;

  •     uint32_t carry = 0;

  •     uint32_t i;

  •     for(i = 0; i < X->m_nLength; i++)

  •     {

  •         mul = X->m_ulValue[i];

  •         mul = mul * A + carry;

  •         X->m_ulValue[i] = (uint16_t)mul;

  •         carry = (uint16_t)(mul >> 16);

  •     }

  •     if(carry)

  •     {

  •         X->m_nLength++;

  •         X->m_ulValue[X->m_nLength - 1] = carry;

  •     }

  •     return X;

  • }

  •

  • /****************************************************************************************

  • 大数相除

  • 调用形式：Div_Big_Big(N,A)

  • 返回值：X=N/A

  • ****************************************************************************************/

  • static CBigInt *Div_Big_Big(CBigInt *X, CBigInt *A)

  • {

  •     CBigInt Y = {0}, Z = {0}, T;

  •     if(A->m_nLength == 1)

  •     {

  •         return Div_Big_Long(X, A->m_ulValue[0]);

  •     }

  •     else

  •     {

  •         uint32_t i, len;

  •         uint32_t num, div;

  •         memcpy(&Y, X, sizeof(CBigInt));

  •         while(Cmp(&Y, A) >= 0)

  •         {

  •             div = Y.m_ulValue[Y.m_nLength - 1];

  •             num = A->m_ulValue[A->m_nLength - 1];

  •             len = Y.m_nLength - A->m_nLength;

  •             if((div == num) && (len == 0))

  •             {

  •                 Add_Big_Long(X, 1);

  •                 break;

  •             }

  •             if((div <= num) && len)

  •             {

  •                 len--;

  •                 div = (div << 16) + Y.m_ulValue[Y.m_nLength - 2];

  •             }

  •             div = div / (num + 1);

  •             Mov_Big_Long(&Z, div);

  •             if(len)

  •             {

  •                 Z.m_nLength += len;

  •                 for(i = Z.m_nLength - 1; i >= len; i--)

  •                 {

  •                     Z.m_ulValue[i] = Z.m_ulValue[i - len];

  •                 }

  •                 for(i = 0; i < len; i++)

  •                 {

  •                     Z.m_ulValue[i] = 0;

  •                 }

  •             }

  •             Add_Big_Big(X, &Z);

  •             memcpy(&T, A, sizeof(CBigInt));

  •             Mul_Big_Big(&T, &Z);

  •             Sub_Big_Big(&Y, &T);

  •         }

  •         return X;

  •     }

  • }

  • static CBigInt *Div_Big_Long(CBigInt *X, uint32_t A)

  • {

  •     if(X->m_nLength == 1)

  •     {

  •         X->m_ulValue[0] = X->m_ulValue[0] / A;

  •         return X;

  •     }

  •     else

  •     {

  •         uint32_t div, mul;

  •         uint32_t carry = 0;

  •         int i;

  •         for(i = X->m_nLength - 1; i >= 0; i--)

  •         {

  •             div = carry;

  •             div = (div << 16) + X->m_ulValue[i];

  •             X->m_ulValue[i] = (uint16_t)(div / A);

  •             mul = (div / A) * A;

  •             carry = (uint16_t)(div - mul);

  •         }

  •         if(X->m_ulValue[X->m_nLength - 1] == 0)

  •         {

  •             X->m_nLength--;

  •         }

  •         return X;

  •     }

  • }

  •

  • /****************************************************************************************

  • 大数求模

  • 调用形式：Mod_Big_Big(N,A)

  • 返回值：X=N%A

  • ****************************************************************************************/

  • static CBigInt *Mod_Big_Big(CBigInt *X, CBigInt *A)

  • {

  •     CBigInt Y = {0}, Z;

  •     uint32_t div, num;

  •     uint32_t carry = 0;

  •     uint32_t i, len;

  •     while(Cmp(X, A) >= 0)

  •     {

  •         div = X->m_ulValue[X->m_nLength - 1];

  •         num = A->m_ulValue[A->m_nLength - 1];

  •         len = X->m_nLength - A->m_nLength;

  •         if((div == num) && (len == 0))

  •         {

  •             Sub_Big_Big(X, A);

  •             break;

  •         }

  •         if((div <= num) && len)

  •         {

  •             len--;

  •             div = (div << 16) + X->m_ulValue[X->m_nLength - 2];

  •         }

  •         div = div / (num + 1);

  •         Mov_Big_Long(&Y, div);

  •         memcpy(&Z, A, sizeof(CBigInt));

  •         Mul_Big_Big(&Z, &Y);

  •         memcpy(&Y, &Z, sizeof(CBigInt));

  •         if(len)

  •         {

  •             Y.m_nLength += len;

  •             for(i = Y.m_nLength - 1; i >= len; i--)

  •             {

  •                 Y.m_ulValue[i] = Y.m_ulValue[i - len];

  •             }

  •             for(i = 0; i < len; i++)

  •             {

  •                 Y.m_ulValue[i] = 0;

  •             }

  •         }

  •         Sub_Big_Big(X, &Y);

  •     }

  •     return X;

  • }

  •

  • static uint32_t Mod_Big_Long(CBigInt *N, uint32_t A)

  • {

  •     if(N->m_nLength == 1)

  •     {

  •         return(N->m_ulValue[0] % A);

  •     }

  •     else

  •     {

  •         uint32_t div;

  •         uint32_t carry = 0;

  •         int i;

  •         for(i = N->m_nLength - 1; i >= 0; i--)

  •         {

  •             div = N->m_ulValue[i];

  •             div += carry * CARRYOVER;

  •             carry = (uint16_t)(div % A);

  •         }

  •         return carry;

  •     }

  • }

  •

  • /****************************************************************************************

  • 从字符串按10进制或16进制格式输入到大数

  • 调用格式：Get(N,str,sys)

  • 返回值：N被赋值为相应大数

  • sys暂时只能为10或16

  • ****************************************************************************************/

  • static CBigInt *Get(CBigInt *N, char *s, uint32_t system)

  • {

  •     int i;

  •     int len = strlen(s), k;

  •     memset(N, 0, sizeof(CBigInt));

  •     N->m_nLength = 1;

  •     for(i = 0; i < len; i++)

  •     {

  •         Mul_Big_Long(N, system);

  •         if((s[i] >= '0') && (s[i] <= '9'))

  •         {

  •             k = s[i] - 48;

  •         }

  •         else if((s[i] >= 'A') && (s[i] <= 'F'))

  •         {

  •             k = s[i] - 55;

  •         }

  •         else if((s[i] >= 'a') && (s[i] <= 'f'))

  •         {

  •             k = s[i] - 87;

  •         }

  •         else

  •         {

  •             k = 0;

  •         }

  •         Add_Big_Long(N, k);

  •     }

  •     return N;

  • }

  • static CBigInt *GetHex(CBigInt *N, unsigned char *s, unsigned short len, uint32_t system)

  • {

  •     int i, j;

  •     unsigned char *p = (unsigned char*)N->m_ulValue;

  •     memset(N, 0, sizeof(CBigInt));

  •     N->m_nLength = 1;

  •     for(i = len - 1, j = 0; i >= 0; i--, j++)

  •     {

  •         p[j] = s[i];

  •     }

  •     i = len % 2;

  •     if(i > 0)

  •     {

  •         N->m_nLength = len / 2 + 1;

  •     }

  •     else

  •     {

  •         N->m_nLength = len / 2;

  •     }

  •     return N;

  • }

  • /****************************************************************************************

  • 将大数按10进制或16进制格式输出为字符串

  • 调用格式：Put(N,str,sys)

  • 返回值：无，参数str被赋值为N的sys进制字符串

  • sys暂时只能为10或16

  • ****************************************************************************************/

  • static char *Put(CBigInt *N, uint32_t system)

  • {

  •     char t[17] = "0123456789ABCDEF";

  •     int i, a;

  •     static char s[2048];

  •

  •     if((N->m_nLength == 1) && (N->m_ulValue[0] == 0))

  •     {

  •         return NULL;

  •     }

  •     else

  •     {

  •         CBigInt X = {0};

  •         memcpy(&X, N, sizeof(CBigInt));

  •         memset(s, 0, 2048);

  •         for(i = 2046; X.m_ulValue[X.m_nLength - 1] > 0 && i > 0; i--)

  •         {

  •             a = Mod_Big_Long(&X, system);

  •             s[i] = t[a];

  •             Div_Big_Long(&X, system);

  •         }

  •         if(i % 2 == 0)

  •         {

  •             return &s[i + 1];

  •         }

  •         else

  •         {

  •             s[i] = '0';

  •             return &s[i];

  •         }

  •     }

  • }

  •

  • static void PutHex(CBigInt *N, uint8_t *out, uint16_t *len)

  • {

  •     int i, j, size;

  •     if((N->m_nLength == 1) && (N->m_ulValue[0] == 0))

  •     {

  •         return;

  •     }

  •     size = N->m_nLength * sizeof(N->m_ulValue[0]);

  •     for(i = size - 1, j = 0; i >= 0; i--, j++)

  •     {

  •         out[j] = ((uint8_t*)N->m_ulValue)[i];

  •     }

  •     *len = size;

  • }

  •

  • /****************************************************************************************

  • 求不定方程ax-by=1的最小整数解

  • 调用方式：Euc(N,A)

  • 返回值：X,满足：NX mod A=1

  • ****************************************************************************************/

  • static CBigInt *Euc(CBigInt *X, CBigInt *A)

  • {

  •     CBigInt M = {0}, E = {0}, N = {0}, Y = {0}, I = {0}, J = {0};

  •     int x, y;

  •     memcpy(&E, X, sizeof(CBigInt));

  •     memcpy(&M, A, sizeof(CBigInt));

  •     Mov_Big_Long(X, 0);

  •     Mov_Big_Long(&Y, 1);

  •     x = y = 1;

  •     while((E.m_nLength != 1) || (E.m_ulValue[0] != 0))

  •     {

  •         memcpy(&I, &M, sizeof(CBigInt));

  •         Div_Big_Big(&I, &E);

  •         memcpy(&J, &M, sizeof(CBigInt));

  •         Mod_Big_Big(&J, &E);

  •         memcpy(&M, &E, sizeof(CBigInt));

  •         memcpy(&E, &J, sizeof(CBigInt));

  •         memcpy(&J, &Y, sizeof(CBigInt));

  •         Mul_Big_Big(&Y, &I);

  •         if(x == y)

  •         {

  •             if(Cmp(X, &Y) >= 0)

  •             {

  •                 Sub_Big_Big(&Y, X);

  •             }

  •             else

  •             {

  •                 Sub_Big_Big(&Y, X);

  •                 y = 0;

  •             }

  •         }

  •         else

  •         {

  •             Add_Big_Big(&Y, X);

  •             x = 1 - x;

  •             y = 1 - y;

  •         }

  •         memcpy(X, &J, sizeof(CBigInt));

  •     }

  •     if(x == 0)

  •     {

  •         Sub_Big_Big(X, A);

  •     }

  •     return X;

  • }

  •

  • /****************************************************************************************

  • 求乘方的模

  • 调用方式：RsaTrans(N,A,B)

  • 返回值：X=N^A MOD B

  • ****************************************************************************************/

  • static CBigInt *RsaTrans(CBigInt *X, CBigInt *A, CBigInt *B)

  • {

  •     CBigInt N = {0}, Y = {0}, Z;

  •     int i, j, k;

  •     uint32_t n;

  •     uint32_t num;

  •     k = A->m_nLength * 16 - 16;

  •     num = A->m_ulValue[A->m_nLength - 1];

  •     while(num)

  •     {

  •         num = num >> 1;

  •         k++;

  •     }

  •     memcpy(&N, X, sizeof(CBigInt));

  •     for(i = k - 2; i >= 0; i--)

  •     {

  •         memcpy(&Y, X, sizeof(CBigInt));

  •         Mul_Big_Long(&Y, X->m_ulValue[X->m_nLength - 1]);

  •         Mod_Big_Big(&Y, B);

  •         for(n = 1; n < X->m_nLength; n++)

  •         {

  •             for(j = Y.m_nLength; j > 0; j--)

  •             {

  •                 Y.m_ulValue[j] = Y.m_ulValue[j - 1];

  •             }

  •             Y.m_ulValue[0] = 0;

  •             Y.m_nLength++;

  •             memcpy(&Z, X, sizeof(CBigInt));

  •             Mul_Big_Long(&Z, X->m_ulValue[X->m_nLength - n - 1]);

  •             Add_Big_Big(&Y, &Z);

  •             Mod_Big_Big(&Y, B);

  •         }

  •         memcpy(X, &Y, sizeof(CBigInt));

  •         if((A->m_ulValue[i >> 4] >> (i & 15)) & 1)

  •         {

  •             memcpy(&Y, &N, sizeof(CBigInt));

  •             Mul_Big_Long(&Y, X->m_ulValue[X->m_nLength - 1]);

  •             Mod_Big_Big(&Y, B);

  •             for(n = 1; n < X->m_nLength; n++)

  •             {

  •                 for(j = Y.m_nLength; j > 0; j--)

  •                 {

  •                     Y.m_ulValue[j] = Y.m_ulValue[j - 1];

  •                 }

  •                 Y.m_ulValue[0] = 0;

  •                 Y.m_nLength++;

  •                 memcpy(&Z, &N, sizeof(CBigInt));

  •                 Mul_Big_Long(&Z, X->m_ulValue[X->m_nLength - n - 1]);

  •                 Add_Big_Big(&Y, &Z);

  •                 Mod_Big_Big(&Y, B);

  •             }

  •             memcpy(X, &Y, sizeof(CBigInt));

  •         }

  •     }

  •     return X;

  • }

  •

  • /****************************************************************************************

  • 拉宾米勒算法测试素数

  • 调用方式：Rab(N)

  • 返回值：若N为素数，返回1，否则返回0

  • ****************************************************************************************/

  • static int Rab(CBigInt *N)

  • {

  •     CBigInt S = {0}, A = {0}, I = {0}, K = {0};

  •     uint32_t i, j, pass;

  •     for(i = 0; i < 550; i++)

  •     {

  •         if(Mod_Big_Long(N, PrimeTable[i]) == 0)

  •         {

  •             return 0;

  •         }

  •     }

  •     memcpy(&K, N, sizeof(CBigInt));

  •     K.m_ulValue[0]--;

  •     for(i = 0; i < 5; i++)

  •     {

  •         pass = 0;

  •         Mov_Big_Long(&A, rand()*rand());

  •         memcpy(&S, &K, sizeof(CBigInt));

  •         while((S.m_ulValue[0] & 1) == 0)

  •         {

  •             for(j = 0; j < S.m_nLength; j++)

  •             {

  •                 S.m_ulValue[j] = S.m_ulValue[j] >> 1;

  •                 if(S.m_ulValue[j + 1] & 1)

  •                 {

  •                     S.m_ulValue[j] = S.m_ulValue[j] | 0x8000;

  •                 }

  •             }

  •             if(S.m_ulValue[S.m_nLength - 1] == 0)

  •             {

  •                 S.m_nLength--;

  •             }

  •             memcpy(&I, &A, sizeof(CBigInt));

  •             RsaTrans(&I, &S, N);

  •             if(Cmp(&I, &K) == 0)

  •             {

  •                 pass = 1;

  •                 break;

  •             }

  •         }

  •         if((I.m_nLength == 1) && (I.m_ulValue[0] == 1))

  •         {

  •             pass = 1;

  •         }

  •         if(pass == 0)

  •         {

  •             return 0;

  •         }

  •     }

  •     return 1;

  • }

  •

  • /****************************************************************************************

  • 产生随机素数

  • 调用方法：GetPrime(N,bits)

  • 返回值：N,被赋值为一个bits位（0x100000000进制长度）的素数

  • ****************************************************************************************/

  • static CBigInt *GetPrime(CBigInt *N, int bits)

  • {

  •     uint32_t i;

  •     CBigInt S = {0}, A = {0}, I = {0}, K = {0};

  •

  •     memset(N, 0, sizeof(CBigInt));

  •     N->m_nLength = bits;

  • begin:

  •     srand(portable_rand_seed());

  •     for(i = 0; i < N->m_nLength; i++)

  •     {

  •         N->m_ulValue[i] = rand() * 0x100 + rand();

  •     }

  •     N->m_ulValue[0] = N->m_ulValue[0] | 1;

  •     for(i = N->m_nLength - 1; i > 0; i--)

  •     {

  •         N->m_ulValue[i] = N->m_ulValue[i] << 1;

  •         if(N->m_ulValue[i - 1] & 0x8000)

  •         {

  •             N->m_ulValue[i]++;

  •         }

  •     }

  •     N->m_ulValue[0] = N->m_ulValue[0] << 1;

  •     N->m_ulValue[0]++;

  •     for(i = 0; i < 550; i++)

  •     {

  •         if(Mod_Big_Long(N, PrimeTable[i]) == 0)

  •         {

  •             goto begin;

  •         }

  •     }

  •     memcpy(&K, N, sizeof(CBigInt));

  •     K.m_ulValue[0]--;

  •     for(i = 0; i < 5; i++)

  •     {

  •         Mov_Big_Long(&A, rand()*rand());

  •         memcpy(&S, &K, sizeof(CBigInt));

  •         Div_Big_Long(&S, 2);

  •         memcpy(&I, &A, sizeof(CBigInt));

  •         RsaTrans(&I, &S, N);

  •         if(((I.m_nLength != 1) || (I.m_ulValue[0] != 1)) && (Cmp(&I, &K) != 0))

  •         {

  •             goto begin;

  •         }

  •     }

  •     return N;

  • }

  •

  • /***********************************************************************/

  •

  • static void entropy_poll(unsigned char *output, unsigned int len)

  • {

  •     if(len > 0)

  •     {

  •         int i;

  •         srand(portable_rand_seed);

  •         for(i = 0; i < len; i++)

  •         {

  •             output[i] = rand() % 0xff + 1;

  •         }

  •     }

  • }

  •

  • static char *del_PKCS1Padding(char *src)

  • {

  •     int len = strlen(src);

  •     if(len % 2 == 1)

  •     {

  •         src++;

  •     }

  •     while(*src != 0 && *(src + 1) != 0)

  •     {

  •         if(*src == '0' && *(src + 1) == '0')

  •         {

  •             src += 2;

  •             break;

  •         }

  •         src += 2;

  •     }

  •     return src;

  • }

  •

  • static int add_PKCS1Padding(unsigned char *src, unsigned int len, unsigned char *out)

  • {

  •     if(len > RSA_ENCODE_LEN - 11)

  •     {

  •         return -1;

  •     }

  •     else

  •     {

  •         /*要加密的msg*/

  •         memcpy(&out[RSA_ENCODE_LEN - len], src, len);

  •         out[0] = 0;

  •         out[1] = 2;

  •         /*至少8字节的随机数*/

  •         entropy_poll(&out[2], RSA_ENCODE_LEN - 3 - len);

  •         out[RSA_ENCODE_LEN - len - 1] = 0;

  •         return 0;

  •     }

  • }

  •

  • static int PKCS1PKCS1PaddingHexRemove(unsigned char *input, unsigned short *len, unsigned char *output)

  • {

  •     if(input[0] == 0 && (input[1] == 1 || input[1] == 2))

  •     {

  •         int i;

  •         for(i = 2; i < *len; i++)

  •         {

  •             if(input[i] == 0)

  •             {

  •                 *len -= (i + 1);

  •                 memcpy(output, &input[i + 1], *len);

  •                 return *len;

  •             }

  •         }

  •     }

  •     return -1;

  • }

  •

  •

  • int RSA2048_pri_PKCS1Padding_Encode(unsigned char *data, unsigned short len, unsigned char *out, char *publicKey, char *ModulusHex)

  • {

  •     unsigned char buf[RSA_ENCODE_LEN];

  •     CBigInt N, E;

  •     CBigInt mw, mi, jm;

  •     uint16_t outlen = RSA_ENCODE_LEN;

  •

  •     //Get(&N, Modulus, 16);//string

  •     GetHex(&N, ModulusHex, RSA_ENCODE_LEN, 16);//hex array

  •     Get(&E, publicKey, 16);

  •

  •     add_PKCS1Padding(data, len, buf);

  •

  •     GetHex(&mw, buf, RSA_ENCODE_LEN, 16);

  •

  •     RsaTrans(&mw, &E, &N);

  •

  •     PutHex(&mw, out, &outlen);

  •     return outlen;

  • }

  •

  • int RSA2048_pub_PKCS1Padding_Encode(unsigned char *data, unsigned short len, unsigned char *out, char *publicKey, unsigned char *ModulusHex)

  • {

  •     unsigned char buf[RSA_ENCODE_LEN];

  •     CBigInt N, E;

  •     CBigInt mw, mi, jm;

  •     uint16_t outlen = RSA_ENCODE_LEN;

  •

  •     GetHex(&N, ModulusHex, RSA_ENCODE_LEN, 16);//hex array

  •     Get(&E, publicKey, 16);

  •

  •     add_PKCS1Padding(data, len, buf);

  •

  •     GetHex(&mw, buf, RSA_ENCODE_LEN, 16);

  •

  •     RsaTrans(&mw, &E, &N);

  •

  •     PutHex(&mw, out, &outlen);

  •     return outlen;

  • }

  •

  • int RSA2048_pri_PKCS1Padding_Decode(unsigned char *data, unsigned short *len, unsigned char *out, char *privateKey, char *ModulusHex)

  • {

  •     unsigned char buf[RSA_ENCODE_LEN];

  •     CBigInt N, D;

  •     CBigInt mw, jm;

  •

  •     //Get(&N, Modulus, 16);//string

  •     GetHex(&N, ModulusHex, RSA_ENCODE_LEN, 16);//hex array

  •     Get(&D, privateKey, 16);

  •

  •     GetHex(&mw, data, *len, 16);

  •

  •     RsaTrans(&mw, &D, &N);

  •     PutHex(&mw, buf, len);

  •     PKCS1PKCS1PaddingHexRemove(buf, len, out);

  •     return 0;

  • }

  • int RSA2048_pub_PKCS1Padding_Decode(unsigned char *data, unsigned short *len, unsigned char *out, char *privateKey, unsigned char *ModulusHex)

  • {

  •     unsigned char buf[RSA_ENCODE_LEN];

  •     CBigInt N, D;

  •     CBigInt mw, jm;

  •     int t_len = 0;

  •

  •     GetHex(&N, ModulusHex, RSA_ENCODE_LEN, 16);

  •     Get(&D, privateKey, 16);

  •

  •     GetHex(&mw, data, *len, 16);

  •

  •     RsaTrans(&mw, &D, &N);

  •     PutHex(&mw, buf, len);

  •     t_len = PKCS1PKCS1PaddingHexRemove(buf, len, out);

  •     return t_len;

  • }

  •

  •

  • //test

  • static const unsigned char base64_table[65] = "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/";

  •

  • //需要释放内存

  • unsigned char * base64_encode(const unsigned char *src, size_t len, size_t *out_len)

  • {

  •     unsigned char *out, *pos;

  •     const unsigned char *end, *in;

  •     size_t olen;

  •     int line_len;

  •

  •     olen = len * 4 / 3 + 4; /* 3-byte blocks to 4-byte */

  •     olen += olen / 72; /* line feeds */

  •     olen++; /* nul termination */

  •     if(olen < len)

  •     {

  •         return NULL;    /* integer overflow */

  •     }

  •     out = portable_malloc(olen);

  •     if(out == NULL)

  •     {

  •         return NULL;

  •     }

  •

  •     end = src + len;

  •     in = src;

  •     pos = out;

  •     line_len = 0;

  •     while(end - in >= 3)

  •     {

  •         *pos++ = base64_table[in[0] >> 2];

  •         *pos++ = base64_table[((in[0] & 0x03) << 4) | (in[1] >> 4)];

  •         *pos++ = base64_table[((in[1] & 0x0f) << 2) | (in[2] >> 6)];

  •         *pos++ = base64_table[in[2] & 0x3f];

  •         in += 3;

  •         line_len += 4;

  •         if(line_len >= 72)

  •         {

  •             *pos++ = '\n';

  •             line_len = 0;

  •         }

  •     }

  •

  •     if(end - in)

  •     {

  •         *pos++ = base64_table[in[0] >> 2];

  •         if(end - in == 1)

  •         {

  •             *pos++ = base64_table[(in[0] & 0x03) << 4];

  •             *pos++ = '=';

  •         }

  •         else

  •         {

  •             *pos++ = base64_table[((in[0] & 0x03) << 4) |

  •                                                   (in[1] >> 4)];

  •             *pos++ = base64_table[(in[1] & 0x0f) << 2];

  •         }

  •         *pos++ = '=';

  •         line_len += 4;

  •     }

  •

  •     if(line_len)

  •     {

  •         *pos++ = '\n';

  •     }

  •

  •     *pos = '\0';

  •     if(out_len)

  •     {

  •         *out_len = pos - out;

  •     }

  •     return out;

  • }

  •

  • //需要释放内存

  • unsigned char * base64_decode(const unsigned char *src, size_t len,

  •                               size_t *out_len)

  • {

  •     unsigned char dtable[256], *out, *pos, block[4], tmp;

  •     size_t i, count, olen;

  •     int pad = 0;

  •

  •     memset(dtable, 0x80, 256);

  •     for(i = 0; i < sizeof(base64_table) - 1; i++)

  •     {

  •         dtable[base64_table[i]] = (unsigned char) i;

  •     }

  •     dtable['='] = 0;

  •

  •     count = 0;

  •     for(i = 0; i < len; i++)

  •     {

  •         if(dtable[src[i]] != 0x80)

  •         {

  •             count++;

  •         }

  •     }

  •

  •     if(count == 0 || count % 4)

  •     {

  •         return NULL;

  •     }

  •

  •     olen = count / 4 * 3;

  •     pos = out = portable_malloc(olen);

  •     if(out == NULL)

  •     {

  •         return NULL;

  •     }

  •

  •     count = 0;

  •     for(i = 0; i < len; i++)

  •     {

  •         tmp = dtable[src[i]];

  •         if(tmp == 0x80)

  •         {

  •             continue;

  •         }

  •

  •         if(src[i] == '=')

  •         {

  •             pad++;

  •         }

  •         block[count] = tmp;

  •         count++;

  •         if(count == 4)

  •         {

  •             *pos++ = (block[0] << 2) | (block[1] >> 4);

  •             *pos++ = (block[1] << 4) | (block[2] >> 2);

  •             *pos++ = (block[2] << 6) | block[3];

  •             count = 0;

  •             if(pad)

  •             {

  •                 if(pad == 1)

  •                 {

  •                     pos--;

  •                 }

  •                 else if(pad == 2)

  •                 {

  •                     pos -= 2;

  •                 }

  •                 else

  •                 {

  •                     /* Invalid padding */

  •                     portable_free(out);

  •                     return NULL;

  •                 }

  •                 break;

  •             }

  •         }

  •     }

  •

  •     *out_len = pos - out;

  •     return out;

  • }

  •

  • int main(int argc, char *argv[])

  • {

  • 	//原始公钥-私钥

  •     /*

  •     -----BEGIN PUBLIC KEY-----

  •     MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAwmejRhw/SB2xB3rgJYhg

  •     OWBDX/DponDVVPzTWhn3J4INv6jUa9HDkeHhys4OOZTNajr8kRy4TIemotnIYONJ

  •     noW7VyIQEAkEyxcMett5mqRPBLuyc8Fygn4ho/rd9JId4+PgKLmr6NVcuZCpVXPe

  •     gyqNx0nR/UojISbq/Bu+NlcStmicZUuAeVbkGGUOlvtMzFehkBPwE31EdpYUq+/z

  •     LuJ8OaxC+zm5PFo2AZJfI5Gz5lgb1g5ud0TG1JUrm9Dl5/JSNSL3SXBEC77mdfd0

  •     BA5VFl8lV7IfTfSTUE9IKoMevqZxoaGpyN+ZcBby5NgsoqJJ6vmcJRFjI92UrFHV

  •     1wIDAQAB

  •     -----END PUBLIC KEY-----

  •

  •     -----BEGIN PRIVATE KEY-----

  •     MIIEvQIBADANBgkqhkiG9w0BAQEFAASCBKcwggSjAgEAAoIBAQDCZ6NGHD9IHbEH

  •     euAliGA5YENf8OmicNVU/NNaGfcngg2/qNRr0cOR4eHKzg45lM1qOvyRHLhMh6ai

  •     2chg40mehbtXIhAQCQTLFwx623mapE8Eu7JzwXKCfiGj+t30kh3j4+Aouavo1Vy5

  •     kKlVc96DKo3HSdH9SiMhJur8G742VxK2aJxlS4B5VuQYZQ6W+0zMV6GQE/ATfUR2

  •     lhSr7/Mu4nw5rEL7Obk8WjYBkl8jkbPmWBvWDm53RMbUlSub0OXn8lI1IvdJcEQL

  •     vuZ193QEDlUWXyVXsh9N9JNQT0gqgx6+pnGhoanI35lwFvLk2Cyioknq+ZwlEWMj

  •     3ZSsUdXXAgMBAAECggEAEnEUaw0475VpesUsSEM0pZy9J3fKIg/EHQjS3+RAru3G

  •     ch0I8aV3gPpFmiCL9uhnyCEKXpWz4gaoRyCTwqUtEa2sBOsFTRAd9Uodc/YoBgR6

  •     Pn+zwQlj3H8sn8qnjZDi5wBx/ksGxNKgtjXD6ohQXm8F/hbBpd6HkJiJiBr1o1/a

  •     4Kzh9L1OpYVS5QF0EN3idNkt911vfjA+bqBXXjAf9IHvirQ2GeCNzmHygxiRhAWA

  •     ki2fm0pGbKFUAfo+sgtDPT2jrA4rhSHG4mMr8IWBpr082aKNns7ujxT9ndBCl0Pp

  •     7efPNCT4+zqfyVAB6x2rYhtXTqR7wsASMIfSLzyoIQKBgQDi2sb9z4OEl0mTV0Ey

  •     1Lia4F06QhD7Kl1mhBWYPA1RO1ieAHHINFvwPJQLjHR2yMRMDmTOc3S9Hy3H3QMG

  •     XZlrIl5sgeFzsdqGyd2kscGFUGkH9RY2V/XB0mxQFIGI2PBztqd6e6BJQz4oSyMz

  •     cBZq/NH5u95QRlyI0I1u5b5lMQKBgQDbYZdhqHcDYmc61aHRNEhnxbK4ph1bdTiM

  •     QbIF0wUssXQKwEzvYzswRlI27rXeSHpJA8vc+XAoD/+Ut30I8Td3yUnnsHZctU2D

  •     b/8OTqwFqyrwXM+SvyWZejuvX6IVJuRwPMFG88L88lryEs0ntlQKC/x6wxtcs67X

  •     6ZGsLSfJhwKBgQDAo09/kIv6OA4+lEXFSGZK/mOsaRXKcztFJry/vZ8BcAfchDwa

  •     6nt4EbkV5XuwsuQeQcrQlbJ4NtXFdqRu72SsWU8djV1Jxanv89PHWzseXh4Sp8jo

  •     9OC4aluX1RH6h14IpP6rP/fovrU1ujh2IaSnzXDxRNuQB2/krlSr62Q2wQKBgGNL

  •     jbgvBwcqH+06So6lKmyFx/nZfgoqSVj6VzhZpcrv2sUO+wOTF3QnMAkbDIg6p9aq

  •     eDhhUklfzF+kmVxVybRXEDNk5H3bteTa6Uexhhzet4WpjG4wRDVuZNtg3rzSKK1A

  •     Yn7Z0BSrIUzWA7OIzArsF+/8pULVNTsWxc93dL27AoGAT3eaPv07rhzyztxFYTsr

  •     dHcgNb+vwroN3Ic7IJnxoa2BjyqczaAG3vMrOcxFg2MLJ7fPmI1W4pPOJyxmUhO0

  •     mZhk+F7h+dg7XB7h0lqR1usp3Ak3qyu1f4XZj4imzQWWyETpgE4uA9tBniPQIRK6

  •     miXhZ2YoXfdsSZOatWojGLI=

  •     -----END PRIVATE KEY-----

  •     */

  •

  •     //https://www.oren.net.cn/rsa/info.html

  •     //在线转换为模数和指数

  •

  •     //PEM->模数+指数

  •     char *publicKey_exponent = "10001";

  •     char *privateKey_exponent = "1271146b0d38ef95697ac52c484334a59cbd2777ca220fc41d08d2dfe440aeedc6721d08f1a57780fa459a208bf6e867c8210a5e95b3e206a8472093c2a52d11adac04eb054d101df54a1d73f62806047a3e7fb3c10963dc7f2c9fcaa78d90e2e70071fe4b06c4d2a0b635c3ea88505e6f05fe16c1a5de87909889881af5a35fdae0ace1f4bd4ea58552e5017410dde274d92df75d6f7e303e6ea0575e301ff481ef8ab43619e08dce61f2831891840580922d9f9b4a466ca15401fa3eb20b433d3da3ac0e2b8521c6e2632bf08581a6bd3cd9a28d9eceee8f14fd9dd0429743e9ede7cf3424f8fb3a9fc95001eb1dab621b574ea47bc2c0123087d22f3ca821";

  •

  •     //hex array ,faster than string

  •     //直接使用16进制数据可略微提高速度，软件也支持传入字符串

  •     // 具体看代码中 GetHex 和 Get

  •     static unsigned char ModulusHex[RSA_ENCODE_LEN] =

  •     {

  •         0xC2, 0x67, 0xA3, 0x46, 0x1C, 0x3F, 0x48, 0x1D, 0xB1, 0x07, 0x7A, 0xE0, 0x25, 0x88, 0x60, 0x39,

  •         0x60, 0x43, 0x5F, 0xF0, 0xE9, 0xA2, 0x70, 0xD5, 0x54, 0xFC, 0xD3, 0x5A, 0x19, 0xF7, 0x27, 0x82,

  •         0x0D, 0xBF, 0xA8, 0xD4, 0x6B, 0xD1, 0xC3, 0x91, 0xE1, 0xE1, 0xCA, 0xCE, 0x0E, 0x39, 0x94, 0xCD,

  •         0x6A, 0x3A, 0xFC, 0x91, 0x1C, 0xB8, 0x4C, 0x87, 0xA6, 0xA2, 0xD9, 0xC8, 0x60, 0xE3, 0x49, 0x9E,

  •         0x85, 0xBB, 0x57, 0x22, 0x10, 0x10, 0x09, 0x04, 0xCB, 0x17, 0x0C, 0x7A, 0xDB, 0x79, 0x9A, 0xA4,

  •         0x4F, 0x04, 0xBB, 0xB2, 0x73, 0xC1, 0x72, 0x82, 0x7E, 0x21, 0xA3, 0xFA, 0xDD, 0xF4, 0x92, 0x1D,

  •         0xE3, 0xE3, 0xE0, 0x28, 0xB9, 0xAB, 0xE8, 0xD5, 0x5C, 0xB9, 0x90, 0xA9, 0x55, 0x73, 0xDE, 0x83,

  •         0x2A, 0x8D, 0xC7, 0x49, 0xD1, 0xFD, 0x4A, 0x23, 0x21, 0x26, 0xEA, 0xFC, 0x1B, 0xBE, 0x36, 0x57,

  •         0x12, 0xB6, 0x68, 0x9C, 0x65, 0x4B, 0x80, 0x79, 0x56, 0xE4, 0x18, 0x65, 0x0E, 0x96, 0xFB, 0x4C,

  •         0xCC, 0x57, 0xA1, 0x90, 0x13, 0xF0, 0x13, 0x7D, 0x44, 0x76, 0x96, 0x14, 0xAB, 0xEF, 0xF3, 0x2E,

  •         0xE2, 0x7C, 0x39, 0xAC, 0x42, 0xFB, 0x39, 0xB9, 0x3C, 0x5A, 0x36, 0x01, 0x92, 0x5F, 0x23, 0x91,

  •         0xB3, 0xE6, 0x58, 0x1B, 0xD6, 0x0E, 0x6E, 0x77, 0x44, 0xC6, 0xD4, 0x95, 0x2B, 0x9B, 0xD0, 0xE5,

  •         0xE7, 0xF2, 0x52, 0x35, 0x22, 0xF7, 0x49, 0x70, 0x44, 0x0B, 0xBE, 0xE6, 0x75, 0xF7, 0x74, 0x04,

  •         0x0E, 0x55, 0x16, 0x5F, 0x25, 0x57, 0xB2, 0x1F, 0x4D, 0xF4, 0x93, 0x50, 0x4F, 0x48, 0x2A, 0x83,

  •         0x1E, 0xBE, 0xA6, 0x71, 0xA1, 0xA1, 0xA9, 0xC8, 0xDF, 0x99, 0x70, 0x16, 0xF2, 0xE4, 0xD8, 0x2C,

  •         0xA2, 0xA2, 0x49, 0xEA, 0xF9, 0x9C, 0x25, 0x11, 0x63, 0x23, 0xDD, 0x94, 0xAC, 0x51, 0xD5, 0xD7

  •     };

  •

  •     unsigned char encode_str[RSA_ENCODE_LEN] = {0};

  •     unsigned char decode_str[RSA_ENCODE_LEN] = {0};

  •

  •     int outlen = 0;

  •

  •     unsigned char * base64_str = NULL;

  •     unsigned int base64_str_len = NULL;

  •

  •     uint8_t* decode_base64 = NULL;

  •     char pub_source_string[] = "embedded-system > Public key to RSA encode,hehe";

  •     char pri_source_string[] = "embedded-system > Private key to RSA encode,haha";

  •

  •     printf("RSA demo");

  •     //---------------------------------------------------

  •     memset(encode_str, 0, sizeof(encode_str));

  •     memset(decode_str, 0, sizeof(decode_str));

  •     //公钥加密

  •     outlen = RSA2048_pub_PKCS1Padding_Encode(pub_source_string, strlen(pub_source_string), encode_str, publicKey_exponent, ModulusHex);

  •

  •     //密文转base64方便显示，和在线工具对比结果

  •     // https://the-x.cn/cryptography/Rsa.aspx

  •     //base64_str = base64_encode(encode_str, outlen, &base64_str_len);

  •     //printf("Public encode %d\r\n%s\r\n", base64_str_len, base64_str);

  •     //portable_free(base64_str);

  •

  •     //私钥解密

  •     RSA2048_pri_PKCS1Padding_Decode(encode_str, &outlen, decode_str, privateKey_exponent, ModulusHex);

  •     printf("Private decode %d\r\n%s\r\n", outlen, decode_str);

  •

  •     //---------------------------------------------------

  •     memset(encode_str, 0, sizeof(encode_str));

  •     memset(decode_str, 0, sizeof(decode_str));

  •

  •     //私钥签名

  •     outlen = RSA2048_pri_PKCS1Padding_Encode(pri_source_string, strlen(pri_source_string), encode_str, privateKey_exponent, ModulusHex);

  •

  •     //公钥验签

  •     RSA2048_pub_PKCS1Padding_Decode(encode_str, &outlen, decode_str, publicKey_exponent, ModulusHex);

  •     printf("Public decode %d\r\n%s\r\n", outlen, decode_str);

  •

  •     //---------------------------------------------------

  •     printf("RSA demo done");

  •     return 0;

  • }

  •

  •

5、应用

和AES一样，RSA也是块加密算法（ block cipher algorithm），只针对固定长度明文，如RSA2048其加密的明文长度需要填充后是2048位即256字节，如果明文长度大于256字节则需要拆分。当然最简单的办法是应用层分配256字节缓存，有效数据以外以0x00填充。

RSA算法虽然安全，但计算量非常大，效率较低，尤其在嵌入式系统中，硬件资源有限的情况下加密、解密时间以秒为单位。而对称加密算法AES算法效率高，但其在密钥协商时，在网络传输中有被拦截的风险，或者任一方保存不当导致密钥泄露，其密钥存在很大的安全隐患。

所以，考虑到安全性和高效性，一般采用多种算法组合加密的方式。使用RSA来加密AES的密钥，密钥协商后，使用AES来对后续数据进行加密。

方便获取更多学习、工作、生活信息请关注本站微信公众号城东书院 微信服务号城东书院 微信订阅号
1
来顶一下
返回首页
返回首页
上一篇:嵌入式算法17---SHA256哈希算法 下一篇:嵌入式算法19---国家商用密码SM算法
推荐内容
高考生入学注意：这些大学不收复读生
高考生入学注意：这些大		【健康】纯净水、天然水、矿泉水、白开水有什么区别？日常喝水怎么选？
【健康】纯净水、天然
14种竞赛生升学路径盘点，原来高考只是你的第15个选择！
14种竞赛生升学路径盘		excel后缀xls和xlsx有什么区别？转换格式难不难？
excel后缀xls和xlsx有
相关内容
栏目更新
栏目热门
关于我们 | 联系我们 | 用户协议 | 广告服务 | 申请链接 | 网站地图 | 版权声明 | 用户留言 | 招聘信息 | 帮助中心 | 社区讨论 | 下载服务
中国文明网传播文明
Copyright ©2019-2024 CDSY Corporation, All Rights Reserved
城东书院® CDSY.XYZ 版权所有 湘ICP备19021508号-1 公安网备案湘公网安备 43102202000103号
※学习、工作、生活信息平台※
天才之⾈，在汗⽔的河流⾥启程。 —老学究
本网大部分资源来源于会员上传，除本网组织的资源外，版权归原作者所有，如有侵犯版权，请立刻和本网联系并提供证据，本网将在三个工作日内改正。
美工素材
免费外链
一起解密
城东书院
美工之家
