深度学习：基于python，函数总和运用

误差反向传播法的实现

神经网络学习的全貌图

对应误差反向传播法的神经网络的实现

使用的一个类:计算图层，第五章：这里神经网络层：y=xw+b

class Affine:
    def __init__(self, W, b):
        self.W =W
        self.b = b

        self.x = None
        self.original_x_shape = None
        # 权重和偏置参数的导数
        self.dW = None
        self.db = None

    def forward(self, x):
        # 对应张量
        self.original_x_shape = x.shape
        x = x.reshape(x.shape[0], -1)
        self.x = x

        out = np.dot(self.x, self.W) + self.b   #这里神经网络层：y=xw+b

        return out

    def backward(self, dout):
        dx = np.dot(dout, self.W.T)
        self.dW = np.dot(self.x.T, dout)
        self.db = np.sum(dout, axis=0)

        dx = dx.reshape(*self.original_x_shape)  # 还原输入数据的形状（对应张量）
        return dx

激活函数层的实现

class Relu:
    def __init__(self):
        self.mask = None

    def forward(self, x):
        self.mask = (x <= 0)
        out = x.copy()
        out[self.mask] = 0

        return out

    def backward(self, dout):
        dout[self.mask] = 0
        dx = dout

        return dx

def softmax(a):
	 exp_a = np.exp(a)
	 sum_exp_a = np.sum(exp_a)
	 y = exp_a / sum_exp_a
	 return y

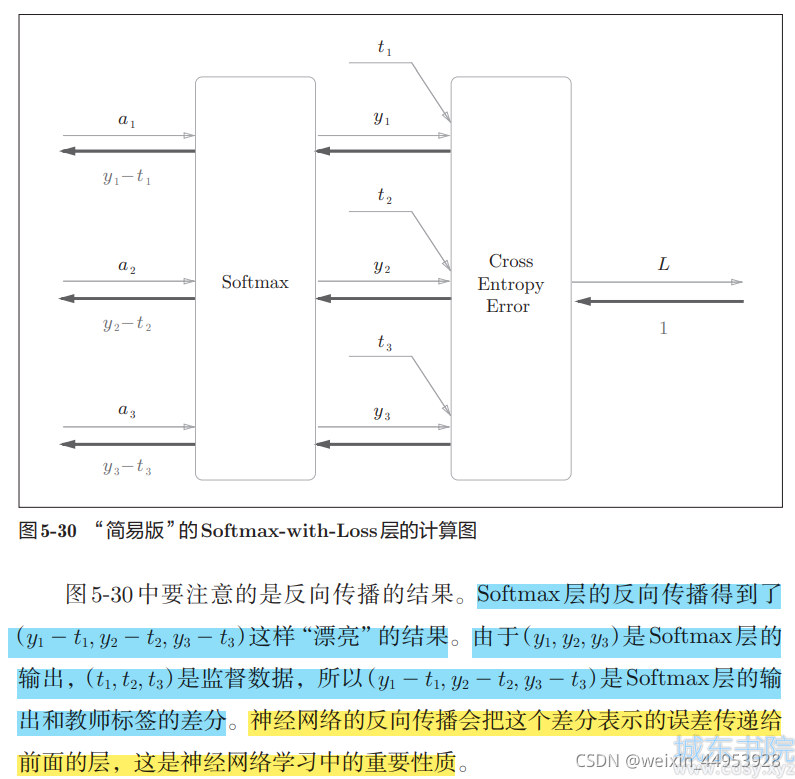

class SoftmaxWithLoss:
    def __init__(self):
        self.loss = None
        self.y = None # softmax的输出
        self.t = None # 监督数据

    def forward(self, x, t):
        self.t = t
        self.y = softmax(x)
        self.loss = cross_entropy_error(self.y, self.t) #交叉熵误差,输出的越小，表明越精确

        return self.loss

    def backward(self, dout=1):
        batch_size = self.t.shape[0]
        if self.t.size == self.y.size: # 监督数据是one-hot-vector的情况
            dx = (self.y - self.t) / batch_size
        else:
            dx = self.y.copy()
            dx[np.arange(batch_size), self.t] -= 1
            dx = dx / batch_size

        return dx

传统的梯度的计算方法

def numerical_gradient(f, x):
    h = 1e-4 # 0.0001
    grad = np.zeros_like(x)

    it = np.nditer(x, flags=['multi_index'], op_flags=['readwrite'])
    while not it.finished:
        idx = it.multi_index
        tmp_val = x[idx]
        x[idx] = float(tmp_val) + h
        fxh1 = f(x) # f(x+h)

        x[idx] = tmp_val - h
        fxh2 = f(x) # f(x-h)
        grad[idx] = (fxh1 - fxh2) / (2*h)

        x[idx] = tmp_val # 还原值
        it.iternext()

    return grad

类

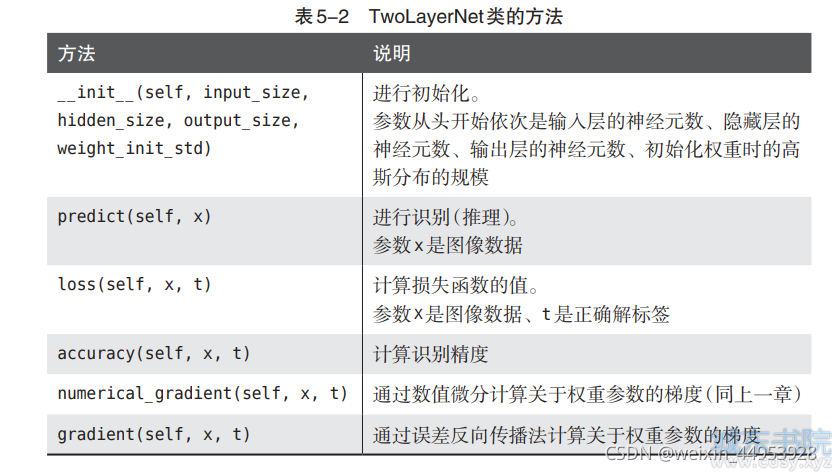

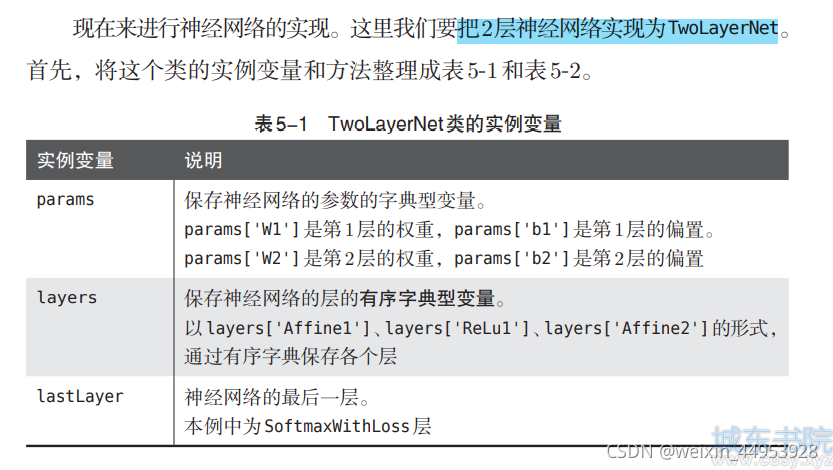

两层神经网络

# coding: utf-8
import sys, os
sys.path.append(os.pardir)  # 为了导入父目录的文件而进行的设定
import numpy as np
from common.layers import *
from common.gradient import numerical_gradient
from collections import OrderedDict


class TwoLayerNet:

    def __init__(self, input_size, hidden_size, output_size, weight_init_std = 0.01):
        #input_size：输入层大小，hidden_size隐藏层大小，output_size输出层大小
        # #weight_init_std：初始化权重时的高斯分布的规模
        # 初始化权重
        #随机生成w，b，慢慢做测试
        self.params = {}    #生成空字典
        self.params['W1'] = weight_init_std * np.random.randn(input_size, hidden_size)
        self.params['b1'] = np.zeros(hidden_size)
        self.params['W2'] = weight_init_std * np.random.randn(hidden_size, output_size)
        self.params['b2'] = np.zeros(output_size)


        # 生成层
        self.layers = OrderedDict()     #
        # Affine1是一个类，里面是这里神经网络层：y=xw+b的forward和backward，误向反差
        self.layers['Affine1'] = Affine(self.params['W1'], self.params['b1'])

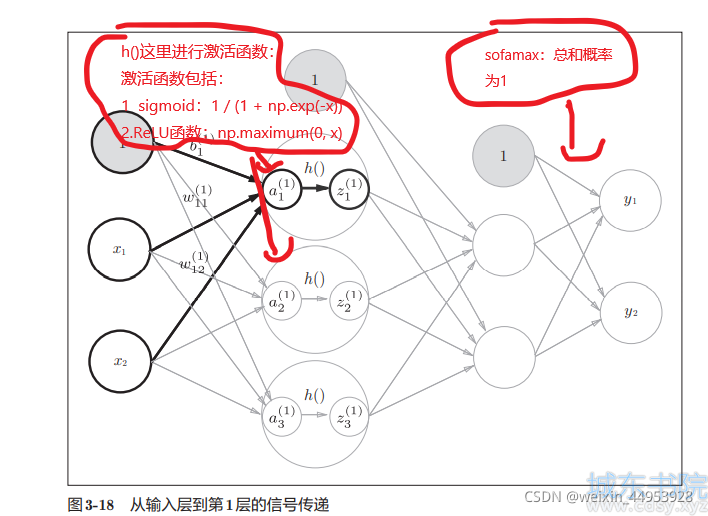

        # 激活函数层的实现相当于relu和Sigmoid，都是在隐藏层处理h（）函数
        self.layers['Relu1'] = Relu()

        self.layers['Affine2'] = Affine(self.params['W2'], self.params['b2'])
        #显示Affine1 经过 Relu1 的处理到Affine2

        self.lastLayer = SoftmaxWithLoss()

    #前向通道，遍历
    def predict(self, x):
        for layer in self.layers.values():
            x = layer.forward(x)

        return x

    # x:输入数据, t:监督数据 ，计算损失值
    def loss(self, x, t):
        y = self.predict(x)
        return self.lastLayer.forward(y, t)

    #计算识别精度
    def accuracy(self, x, t):
        y = self.predict(x)
        y = np.argmax(y, axis=1)
        if t.ndim != 1 :
            t = np.argmax(t, axis=1)

        accuracy = np.sum(y == t) / float(x.shape[0])
        return accuracy

    # x:输入数据, t:监督数据
    #传统的梯度的计算方法
    def numerical_gradient(self, x, t):
        loss_W = lambda W: self.loss(x, t)

        grads = {}
        grads['W1'] = numerical_gradient(loss_W, self.params['W1'])
        grads['b1'] = numerical_gradient(loss_W, self.params['b1'])
        grads['W2'] = numerical_gradient(loss_W, self.params['W2'])
        grads['b2'] = numerical_gradient(loss_W, self.params['b2'])

        return grads

    # 反向传播的梯度的计算方法
    def gradient(self, x, t):
        # forward
        self.loss(x, t)

        # backward
        dout = 1
        dout = self.lastLayer.backward(dout)

        layers = list(self.layers.values())  #把字典转换成列表形式
        layers.reverse()        #列表翻转
        for layer in layers:
            dout = layer.backward(dout)

        # 设定
        grads = {}
        grads['W1'], grads['b1'] = self.layers['Affine1'].dW, self.layers['Affine1'].db
        grads['W2'], grads['b2'] = self.layers['Affine2'].dW, self.layers['Affine2'].db

        return grads

函数执行

取三张照片做测试

没有循环测试，只坐了一遍，没有减小误差

import sys, os
sys.path.append(os.pardir)  # 为了导入父目录的文件而进行的设定
import numpy as np
from dataset.mnist import load_mnist
from two_layer_net import TwoLayerNet

# 读入数据		#x_train(60000, 784)	 t_train(60000, 10)
(x_train, t_train), (x_test, t_test) = load_mnist(normalize=True, one_hot_label=True)

network = TwoLayerNet(input_size=784, hidden_size=50, output_size=10)

x_batch = x_train[:3] #(3, 784)
t_batch = t_train[:3] #(3, 10)

#传统的梯度的计算方法
grad_numerical = network.numerical_gradient(x_batch, t_batch)

 # 反向传播的梯度的计算方法
grad_backprop = network.gradient(x_batch, t_batch)

for key in grad_numerical.keys():
    diff = np.average( np.abs(grad_backprop[key] - grad_numerical[key]) )
    print(key + ":" + str(diff))
